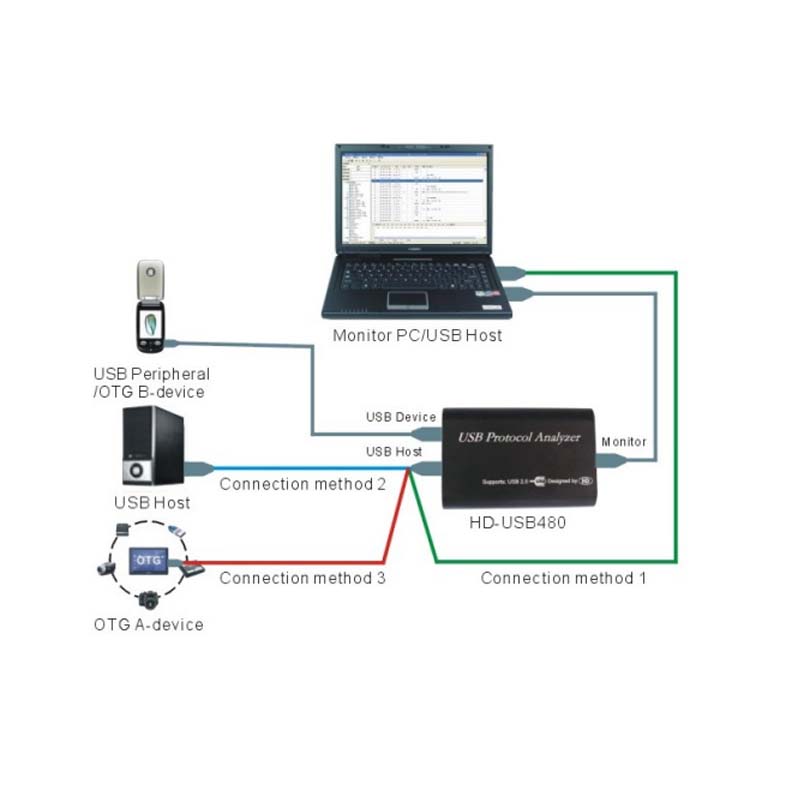

USB Protocol Analyzer is the developing and testing tool for USB products. It records the data sent or received on USB Data Bus and provides powerful analyzing and filtering capability with Upper Computer Software, quickly identifies errors and problems of the data, hence, improves the development quality of USB products and reduces R&D cycle. It is the ideal testing equipment for devellopers and manufacturers of USB products.
key features
key Features
1、Non-intrusive HS/FS/LS USB Bus real-time monitor;
2、Auto detects HS/FS/LS USB Peripheral;
3、Onboard 512Mbit large storage capacity(HD-USB480);
4、Packet-level timing with 16.67 ns or 21 ns resolution;
5、OTG Protocol Analyzer;
6、Synchronized digital output and External Trigger input；
7、Bus Events Analyzer;
8、VBUS Voltage and Current Measurement;
9、Real-time Data packets Filter for quick and easy data location ;
10 、Repetitive packets compression.
